Power TVS

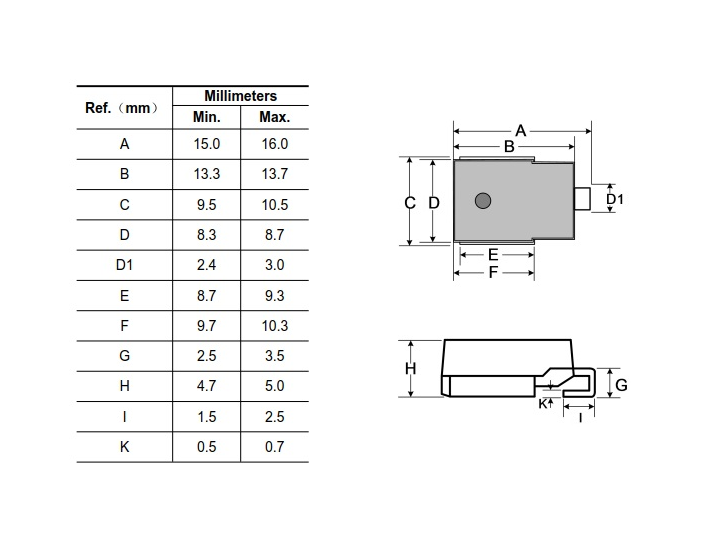

DO-218AB
6600 watts Peak Pulse Power (10/1000μs)
Available in uni-directional polarity only
Junction passivation optimized design passivated anisotropic rectifier technology
Low leakage current
Low forward voltage drop
High surge capability
Meets ISO7637-2 surge specification (varied by test condition)
Applications
Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting, especially for automotive load dump protection application.
