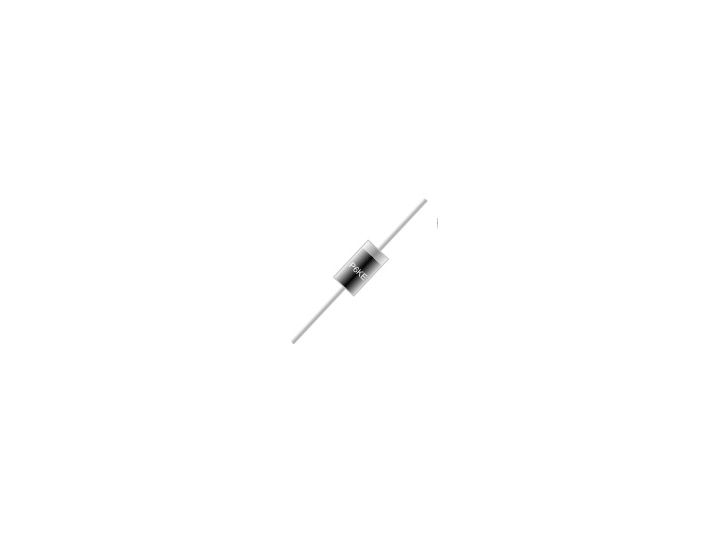

Power TVS

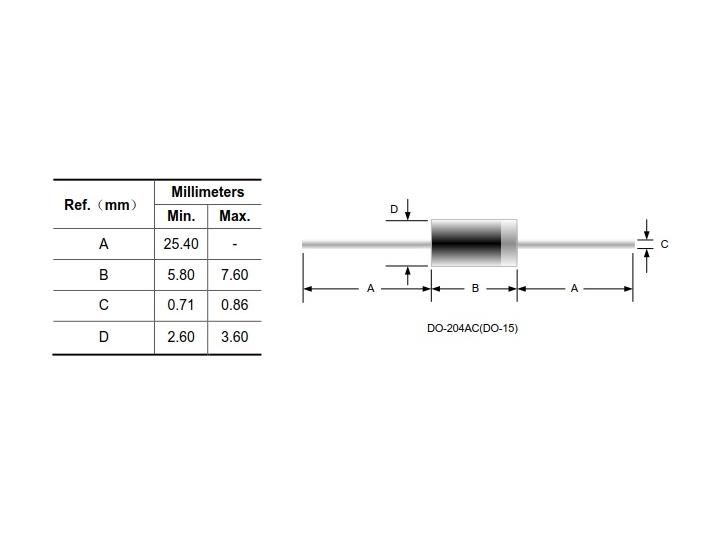

DO-204AC

Features
 600 watts Peak Pulse Power (10/1000μs)
 Unidirectional and Bidirectional Protection
 Fast Response Time : Typically < 1ns
 Excellent Clamping Capability
 Glass Passivated Junction in DO-15 Package
 Low incremental surge resistance
 Plastic package has Underwriters Laboratory Flammability classification 94V-O
 High temperature soldering guaranteed:260℃/10 seconds/.375”,(9.5mm) lead length/5lbs.,(2.3kg) tension

Applications
 I/O Interfaces
 Power lines
 Automotive and Telecommunication
 Signal lines of sensor units for consumer
 Industrial Electronics
 Computer ​
