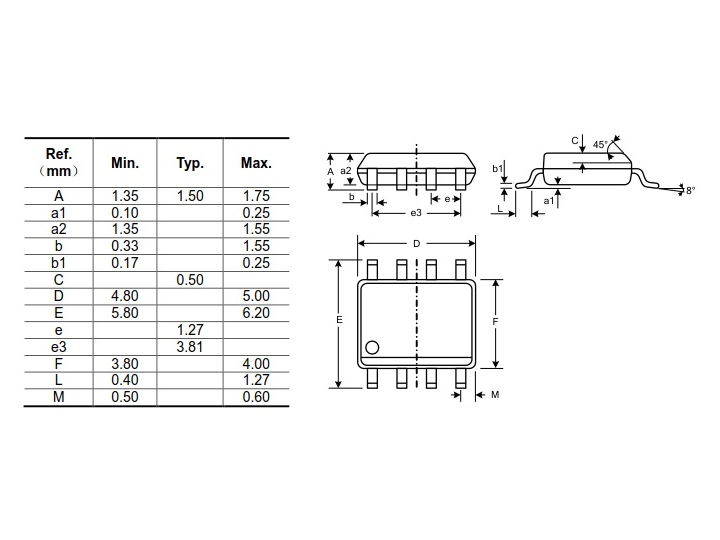

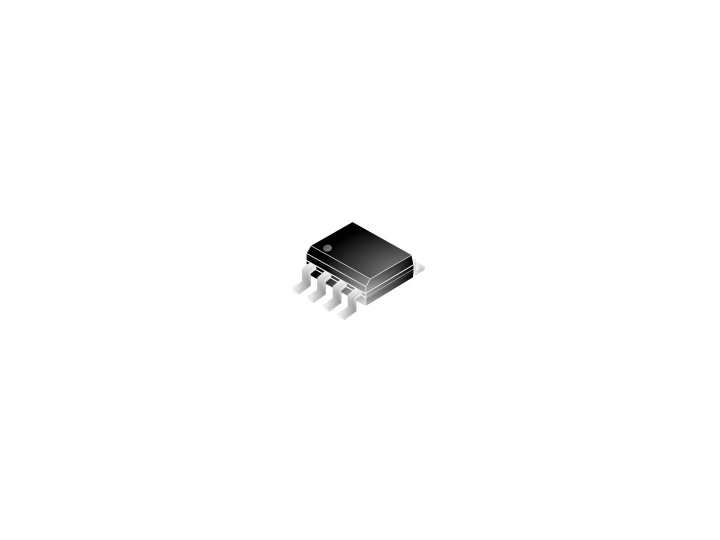

SOP-8

WEOS61089-17 Series

Features

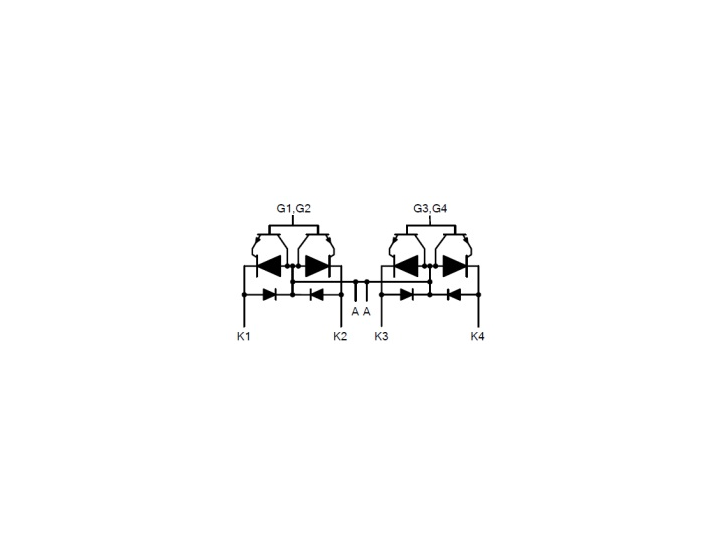

    Dual programmable transient suppressor.
Wide negative firing voltage range:VGKRM=-167V / -155V max.
Low dynamic switching voltage:VFRM and VGK(BD)
Low gate triggering current:IGT=5mA max
Peak pulse current:IPP=30A / 100A for 10/1000us surge
Holding current:IH=150mA min.
