Low Cap TVS

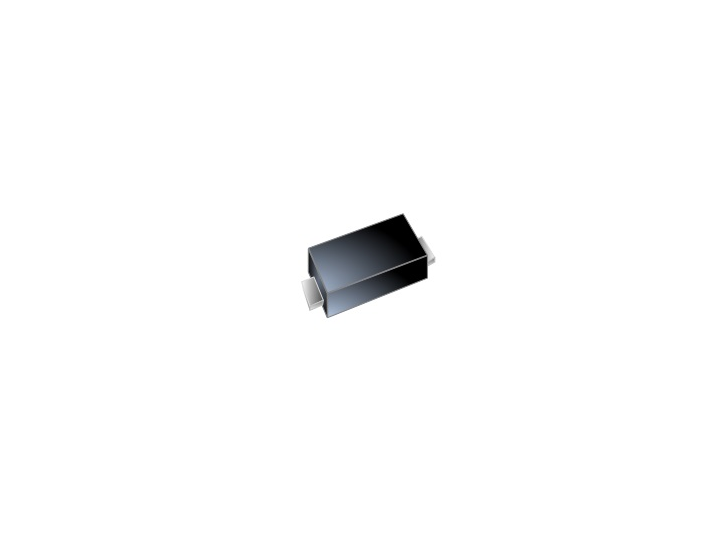

SOD-523

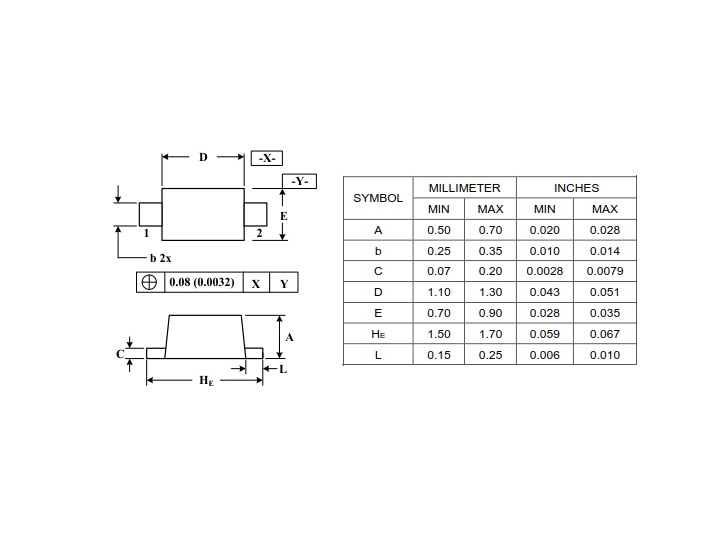

Small Body Outline Dimensions: 0.063″ x 0.032″ (1.6x0.8 mm)
Low Body Height: 0.024″ (0.6 mm) Nom
100 Watts / 400 Watts peak pulse power (tp = 8/20μs)

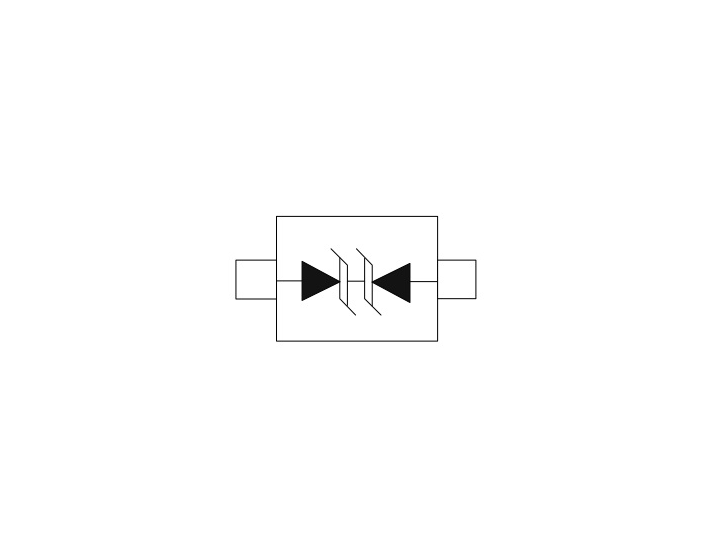

Protects one I/O or power line
Low clamping voltage
Working voltage: 5V
Low leakage current
Solid-state silicon-avalanche technology
Applications
Cellular Handsets & Accessories
Personal Digital Assistants (PDAs)
Notebooks & Handhelds
Portable Instrumentation
Digital Cameras
MP3 players
