Low Cap TVS

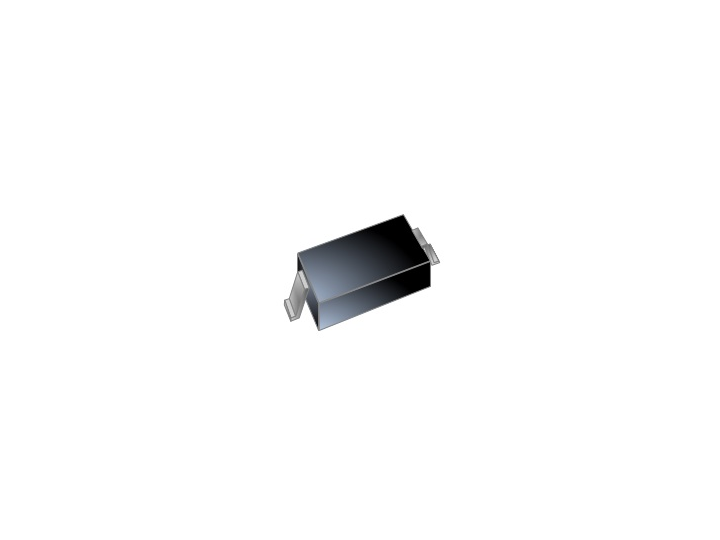

SOD-523

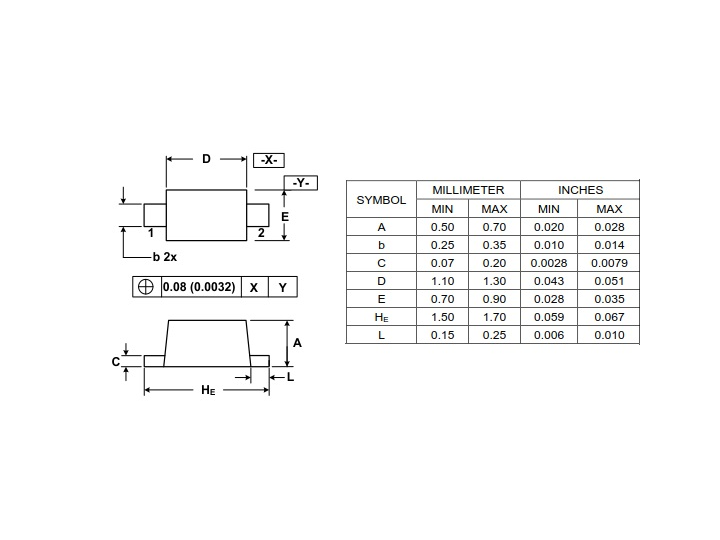

Small Body Outline Dimensions: 0.063″ x 0.032″ (1.6x0.8 mm)
Low Body Height: 0.024″ (0.6 mm) nom

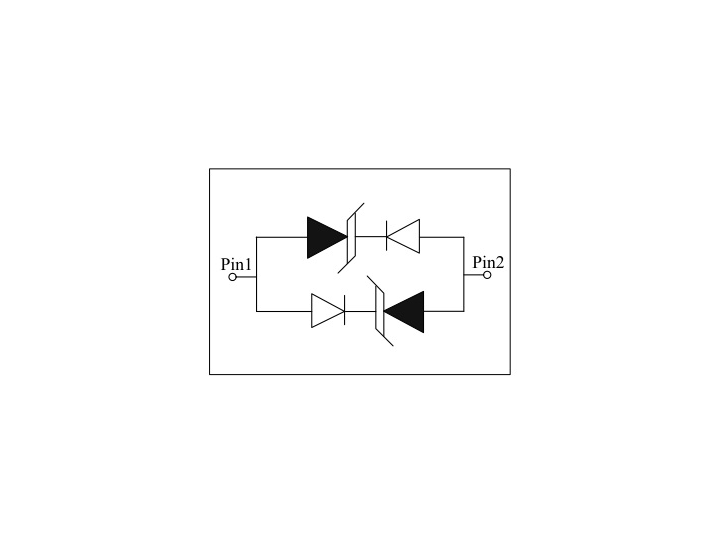

Bidirectional ESD protection of one I/O line
Ultra low capacitance: typically 0.5pF
Low clamping voltage
Working voltage: 5V
Low leakage current
Solid-state silicon-avalanche technology
Applications
Cellular Handsets & Accessories
Personal Digital Assistants (PDAs)
Notebooks & Handhelds
Portable Instrumentation
Digital Cameras
MP3 players
