Low Cap TVS

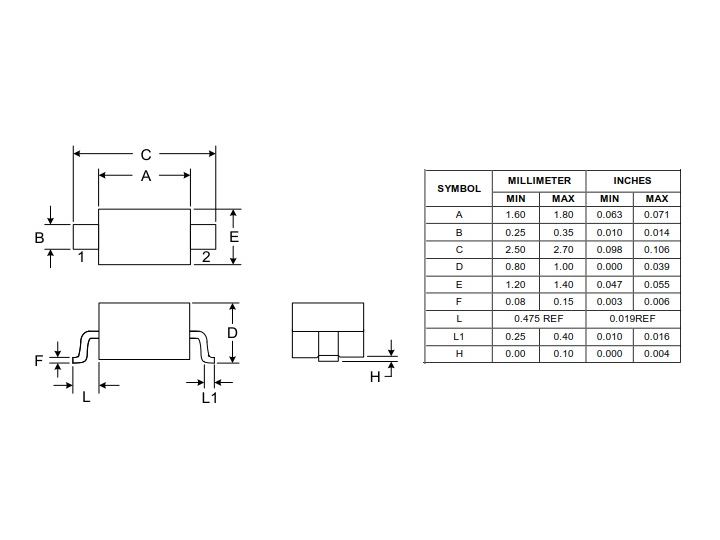

SOD-323

Features
 260 Watts Peak Pulse Power per Line (tp = 8/20μs)
 Bidirectional Configuration
 Protects One Power or I/O Port
 ESD Protection > 40 kilovolts
 Low Working Voltage：3.0V
 Low Clamping Voltages
 Ultra Low Capacitance: 1.5 pF Typical

Applications
 Ethernet - 10/100/1000 Base T
 Cellular Phones
 Handheld - Wireless Systems
 Personal Digital Assistant (PDA)
 USB Interface​
