Low Cap TVS

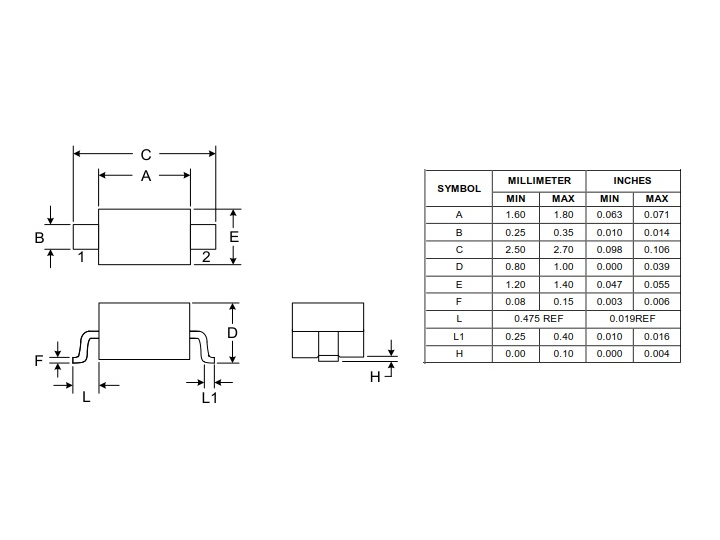

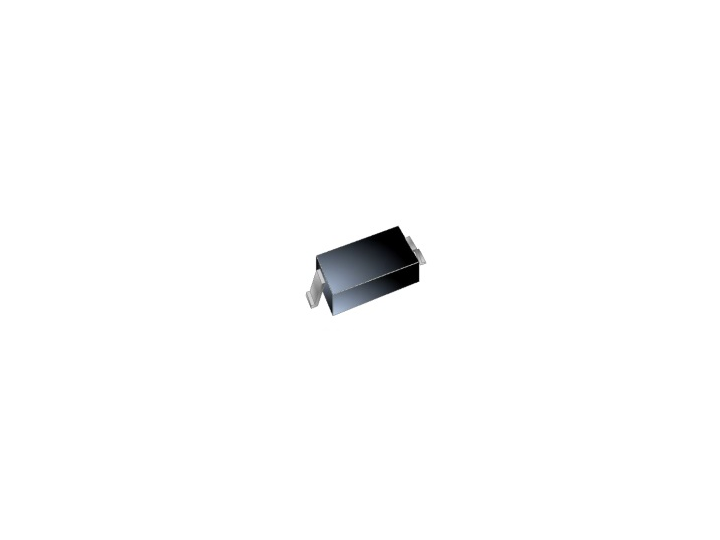

SOD-323
2500 Watts Peak Pulse Power per Line (tp = 8/20μs)
Protects one I/O or power line
Low Clamping Voltage
Working Voltage: 4.5 V
Low Leakage Current
Response Time is Typically < 1 ns
Applications
Laptop Computers
Cellular Phones
Digital Cameras
Personal Digital Assistants (PDAs)
