Low Cap TVS

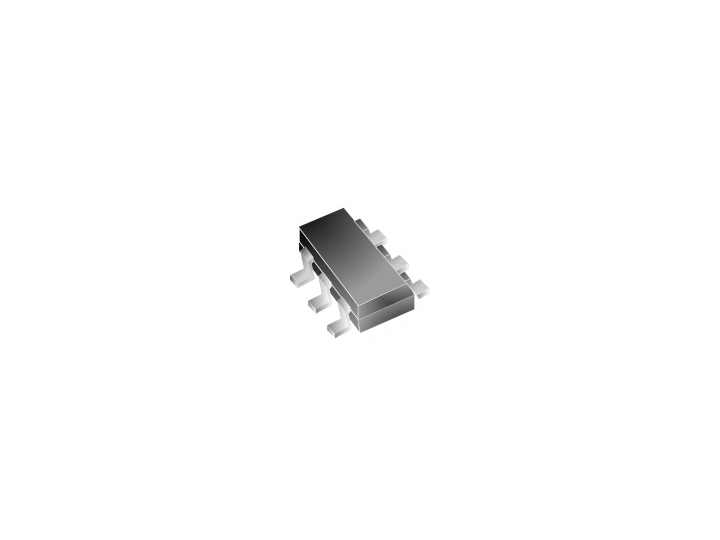

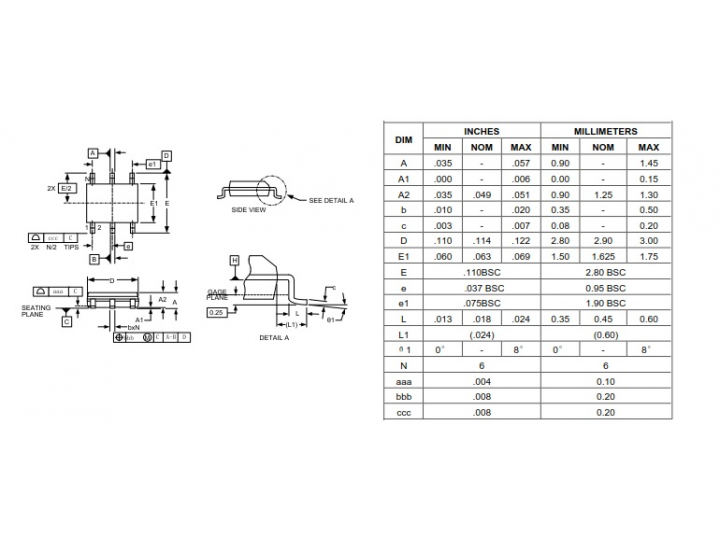

SOT-23-6L

Features
 Solid-state silicon-avalanche technology
 250 Watts Peak Pulse Power per Line (tp=8/20μs)
 Low operating and clamping voltages

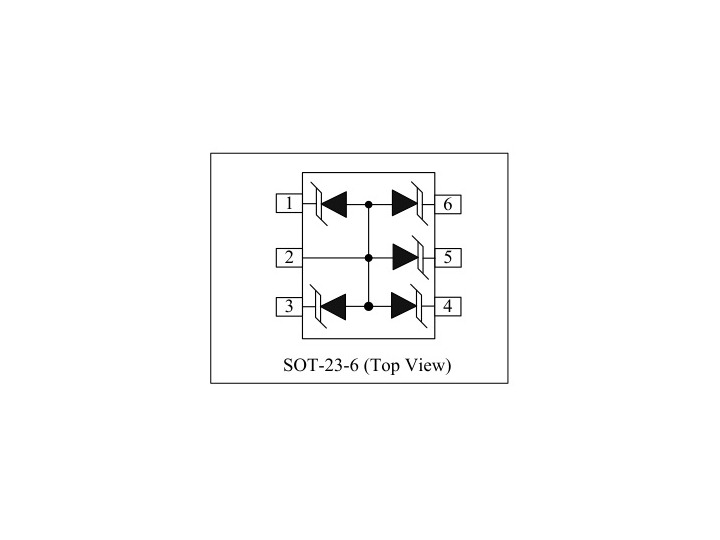

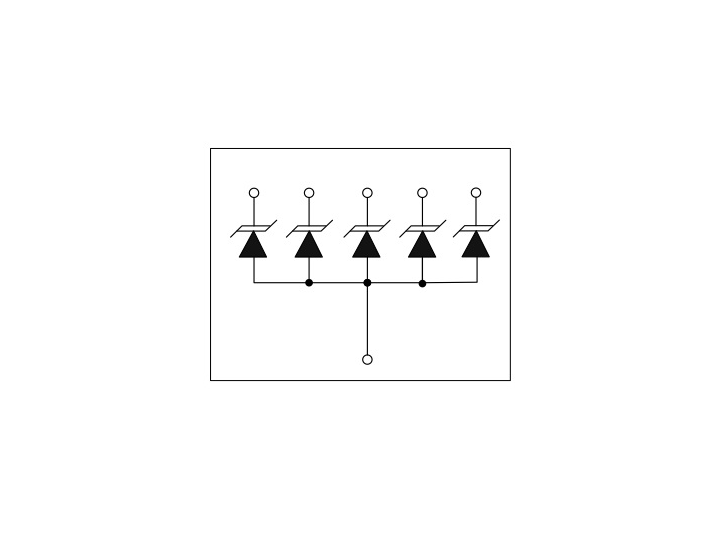

 Protects five I/O lines
 Working Voltage: 5 V
 Low Leakage

Applications
 Cell phone Handsets & Accessories
 Personal Digital Assistants (PDAs)
 Notebook, Laptop, and Palmtop Computers
 Portable Instrumentation
 Digital Cameras
 MP3 Player​
