Low Cap TVS

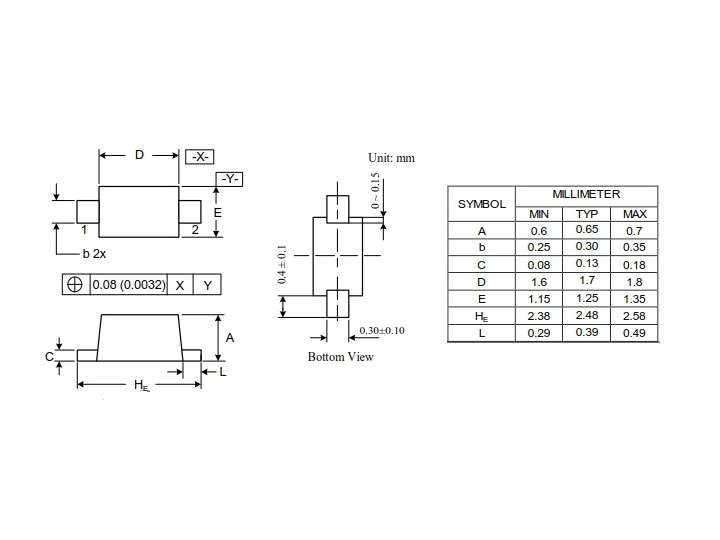

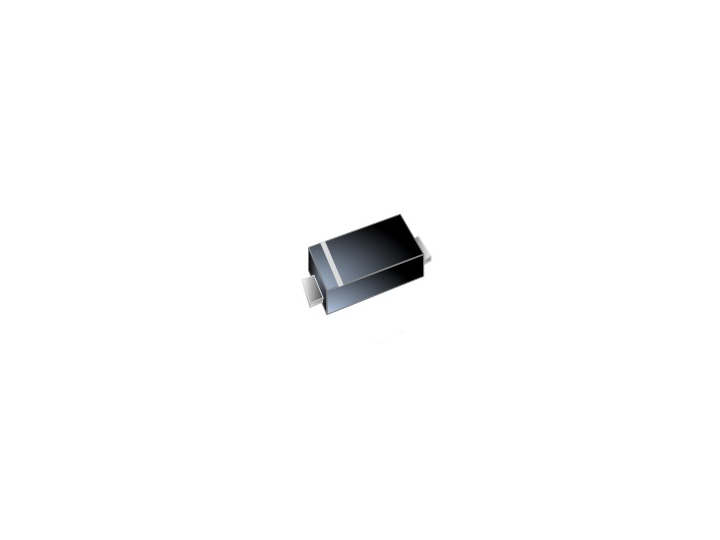

SOD-323F
1500 Watts / 2500 Watts / 1500 Watts Peak Pulse Power per Line (tp = 8/20μs)
Replacement for MLV (0805)
Protects one I/O or power line
Low Clamping Voltage
Working Voltage: 4.5V / 7V / 12 V
Low Leakage Current
Response Time is Typically < 1 ns
Applications
Laptop Computers
Cellular Phones
Digital Cameras
Personal Digital Assistants (PDAs)
