Low Cap TVS

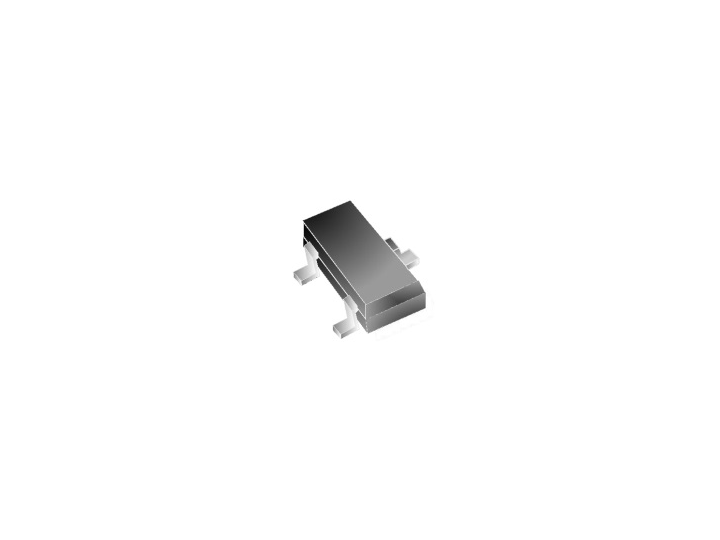

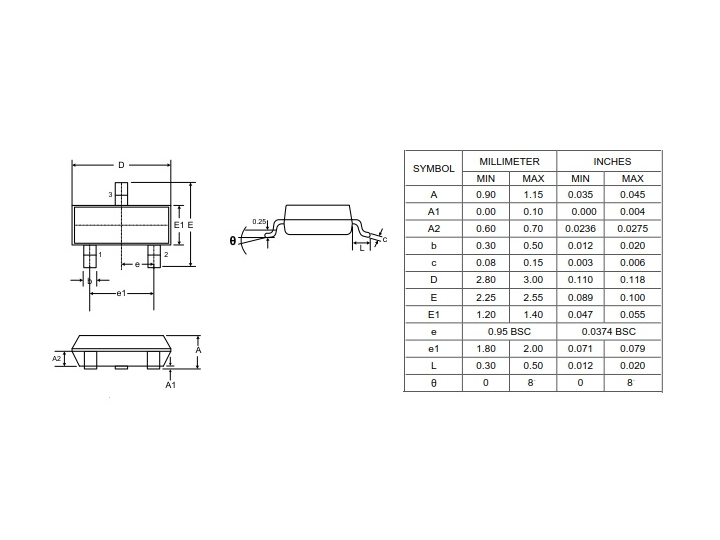

SOT-23

Features
 350 watts peak pulse power (tp = 8/20μs)

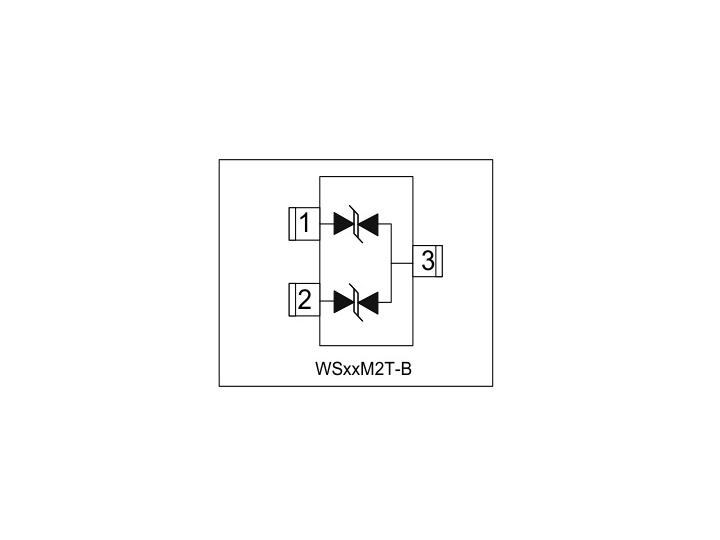

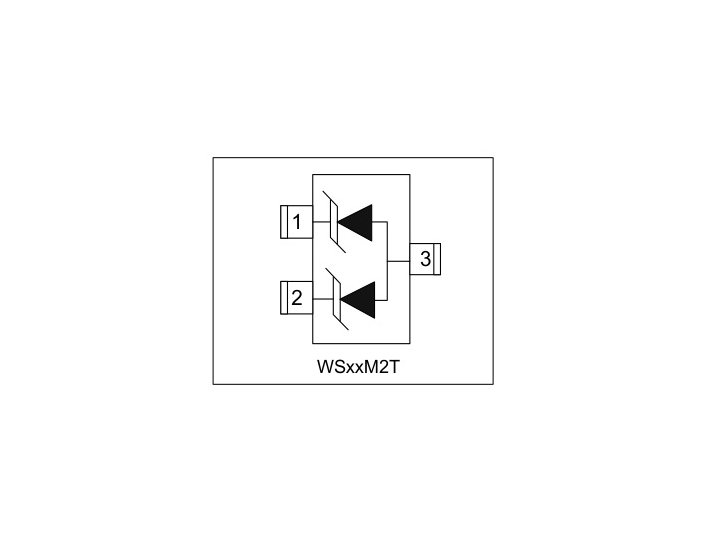

 Unidirectional & Bidirectional Configurations
 Working Voltages: 3.3V, 5V, 12V, 15V, 24V and 36V
 Low clamping voltages
 Low Leakage Current
 Response Time is Typically < 1 ns
 AEC-Q101 Qualified

Applications
 RS-232, RS-422 & RS-485
 Cellular Handsets and Accessories
 Control & Monitoring Systems
 Portable Electronics
 Set-Top Box
 Servers, Notebook, and Desktop PC
 Wireless Bus Protection​
