Low Cap TVS

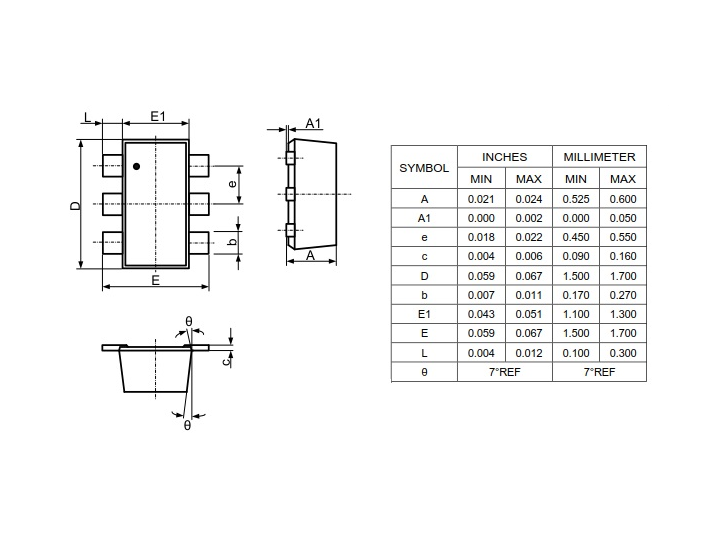

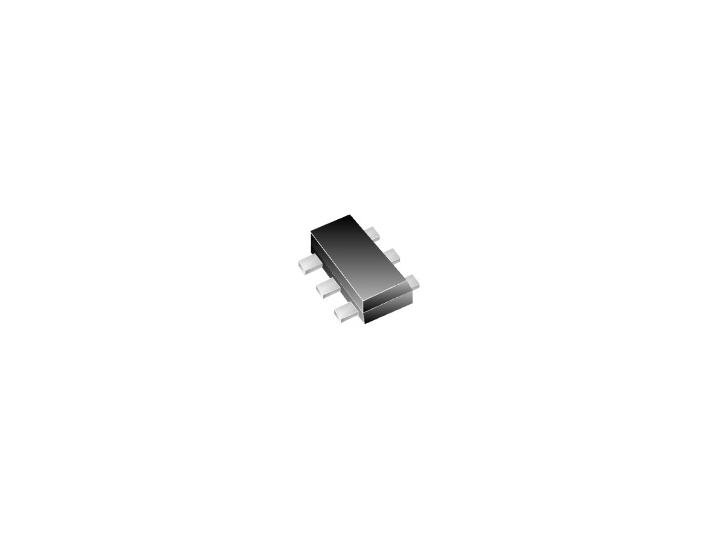

SOT-563

Features
 Solid-state silicon-avalanche technology
 200 Watts / 30 Watts Peak Pulse Power per Line (tp=8/20μs)
 Low operating and clamping voltages

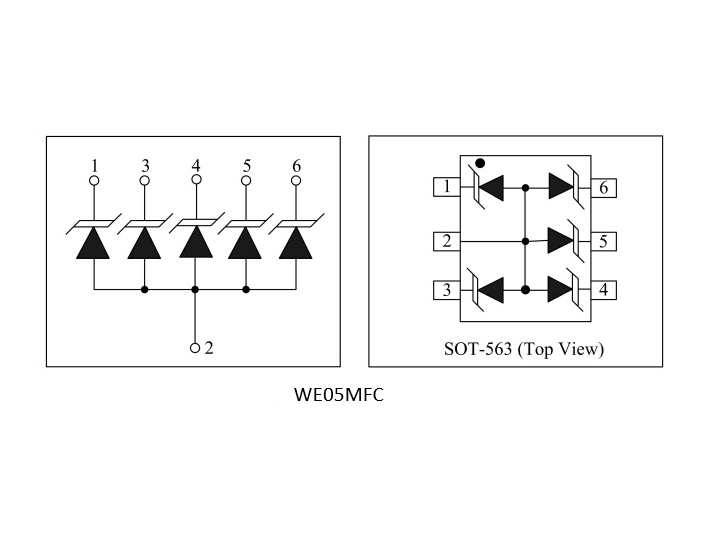

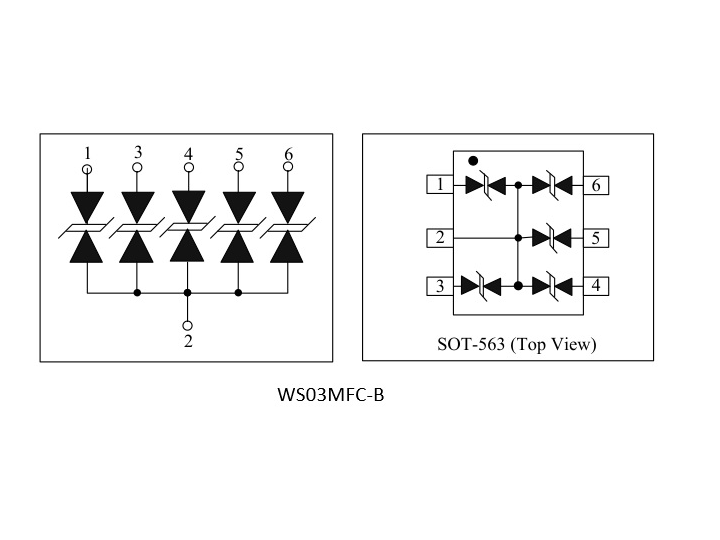

 Protects five I/O lines
 Working Voltages: 3.3V / 5 V
 Low Leakage Current

Applications
 Cellular Handsets & Accessories
 Personal Digital Assistants (PDAs)
 Notebooks & Handhelds
 Portable Instrumentation
 Digital Cameras
 MP3 Player​
