Low Cap TVS

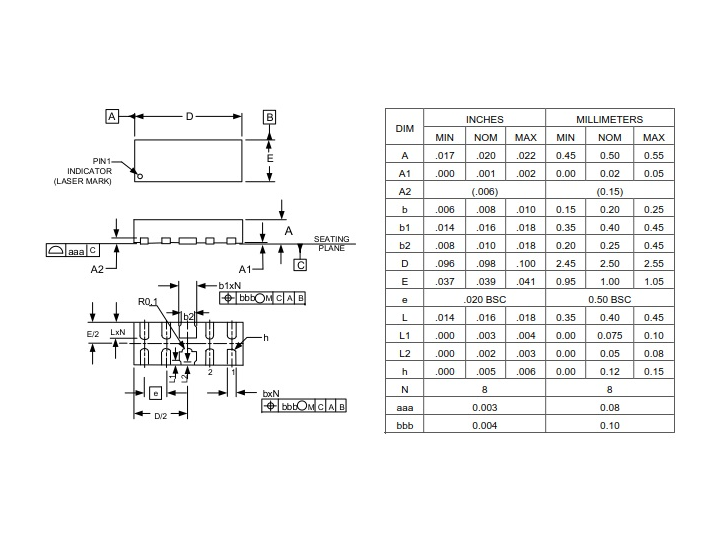

DFN2.5x1-10L

Features
 Solid-state silicon-avalanche technology
 Low operating and clamping voltage

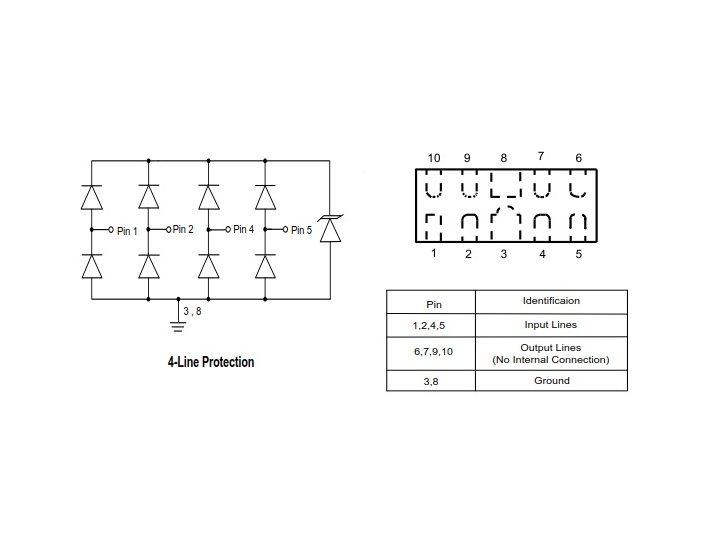

 Up to four I/O Lines of Protection
 Ultra low capacitance: 0.3pF typical(I/O to I/O)
 Low Leakage
 Low operating voltage:5V
 Flow-Through design

Applications
 Digital Visual Interface(DVI)
 MDDI Ports
 DisplayPort TM Interface
 PCI Express
 High Definition Multi-Media Interface(HDMI)
 eSATA Interfaces ​
