Low Cap TVS

DFN0603-D

Features

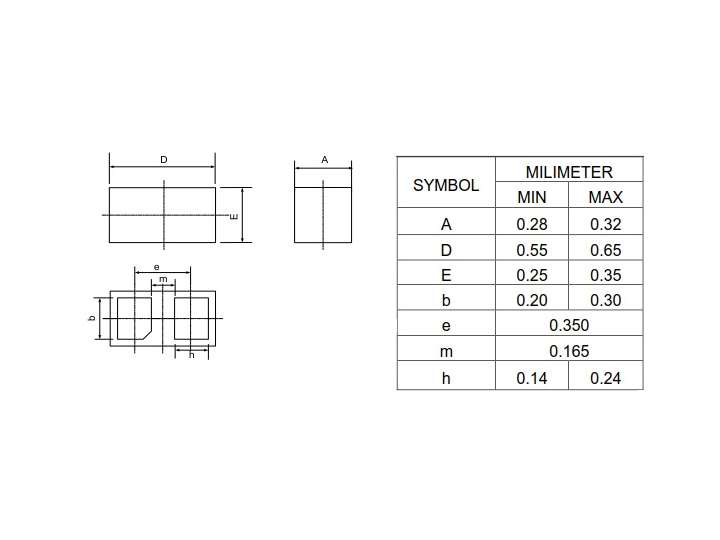

 Small Body Outline Dimensions: 0.60 mm x 0.30 mm
 100 / 150 Watts Peak Pulse Power per Line (tp=8/20μs)
 Bidirectional ESD Protection of one Iine
 Low Clamping Voltage
 Working Voltage: 12 V
 Low Leakage Current

Applications
 Cellular handsets and accessories
 Portable electronics
 Communication systems
 Computers and peripherals​
