Low Cap TVS

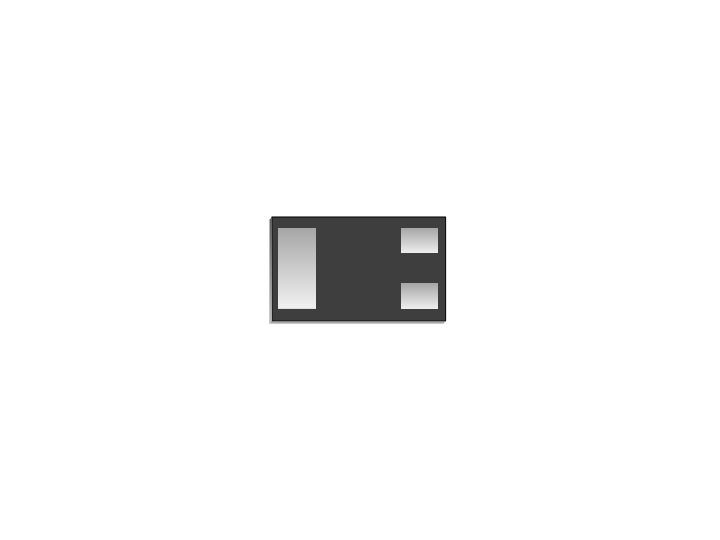

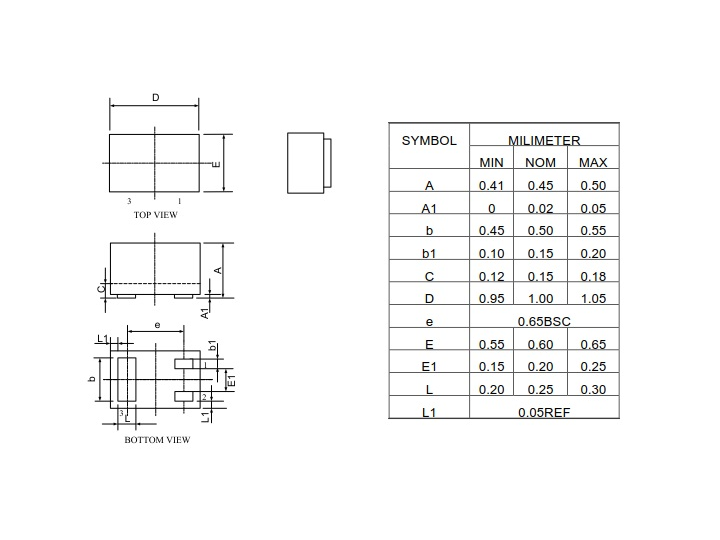

DFN-3L

Features
 60 Watts Peak Power per Line (tp = 8/20μs)

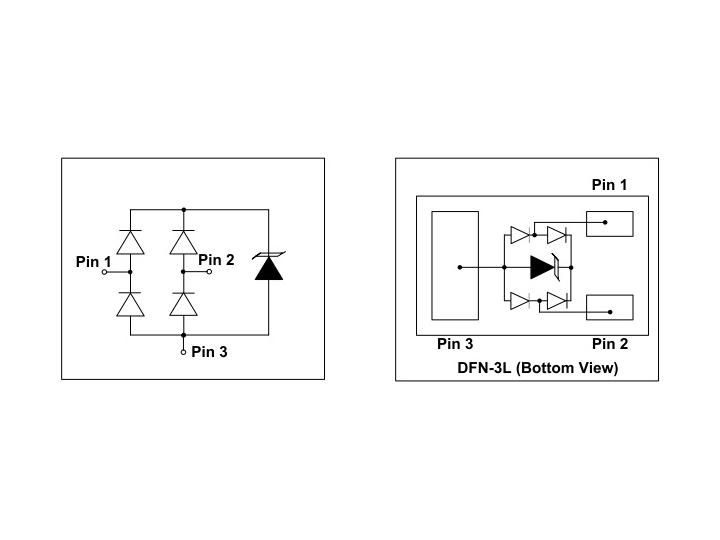

 Protects two I/O lines
 Low operating voltage: 5V
 Low capacitance(<1.5pF)
 Solid-state technology

Applications​
 FireWire & USB
 Sensitive Analog Inputs
 Portable Electronics
 LAN/WAN equipment
 Video Line Protection
 Microcontroller Input Protection
