Low Cap TVS

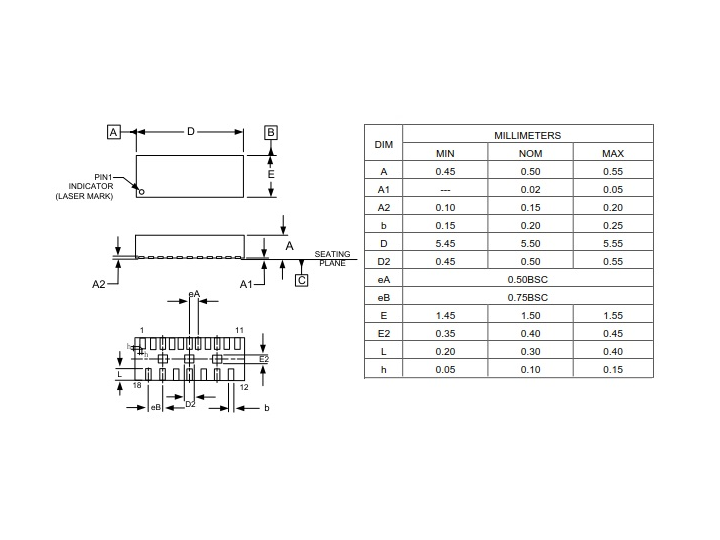

DFN5515-18L

Features
 Integrated 4 Pairs (8 Lines) High Speed Data
 Single Connect, Flow through Routing
 Low Capacitance (0.2 pF Typical, I/O to I/O)
 Working Voltage: 5 V
 Low Leakage Current
 Response Time is Typically < 1 ns

Applications
 V−by−One HS
 Thunderbolt (Light Peak)
 USB 3.0
 HDMI
 Display Port
 LVDS​
